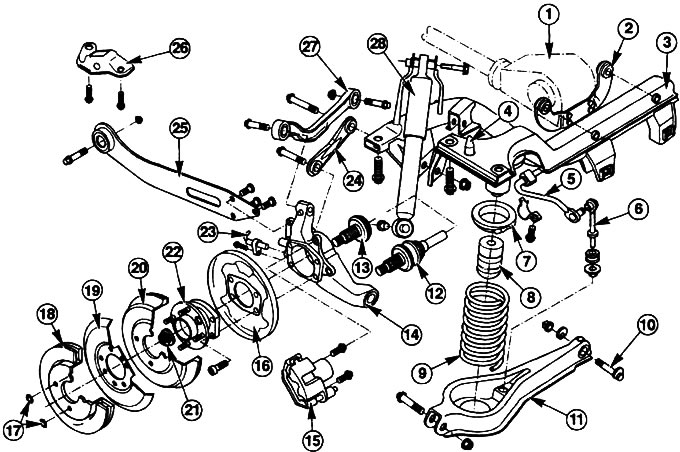

Rear axle of the Mondeo Turnier:
1 - Differential (4x4 only)
2 - Differential bracket (4x4 only)
3 - Rear axle suspension cross member. Caution! Do not lift the vehicle while supporting it on the cross member or rest the vehicle on the cross member.
4 - Guide pins for mounting the crossbar on the body bottom
5 - Anti-roll bar
6 - Stabilizer connecting element
7 - Upper spring support
8 - Compression buffer
9 - Coil spring
10 - Eccentric bolt/washer for track adjustment
11 - Rear lower wishbone
12 - Rear axle shaft (4x4 only)
13 - Wheel hub drive knuckle (two-wheel drive only)
14 - Axle journal
15 - Brake caliper
16 - Brake caliper
17 - Brake drum stoppers
18 - Brake disc (depending on model)
19 - Brake disc shield
20 - Brake drum (depending on model)
21 - Axle nut. Caution! When tightening the nut, the car must stand on its wheels.
22 - Wheel hub/bearing - one piece
23 - ABS wheel sensor
24 - Front Short Wishbone
25 - Torque rod, 120 Nm
26 - Torque rod bracket, 85 Nm
27 - Front Long Wishbone
28 - Shock absorber When removing, place a jack under the lower suspension arm. First unscrew the lower one, then the upper one mounting bolt. Tighten the upper bolt to 80 Nm and the lower bolt to 120 Nm
