Contents: Removal ↳ Installation ↳
Removal
1. Disconnect the negative battery cable.
2. Remove the instrument cluster according to the vehicle type as described earlier in this Chapter.
3. Disconnect the multi-pin plug from the unit by pressing the locking tab up and moving the locking tape to the side.
4. Unscrew the mounting bolts and remove the unit from the vehicle (see Figure 29.4).

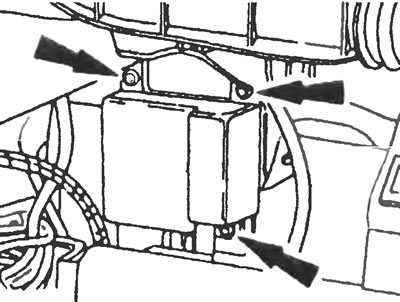

Figure 29.4. Unscrew the fixing bolts (indicated by arrows) and remove the airbag control module.
Installation
5. Installation is carried out in the reverse order of removal.
