Circuit diagram
Engine 1.4 (CVH) fuel injected CFJ US compliant since 1983

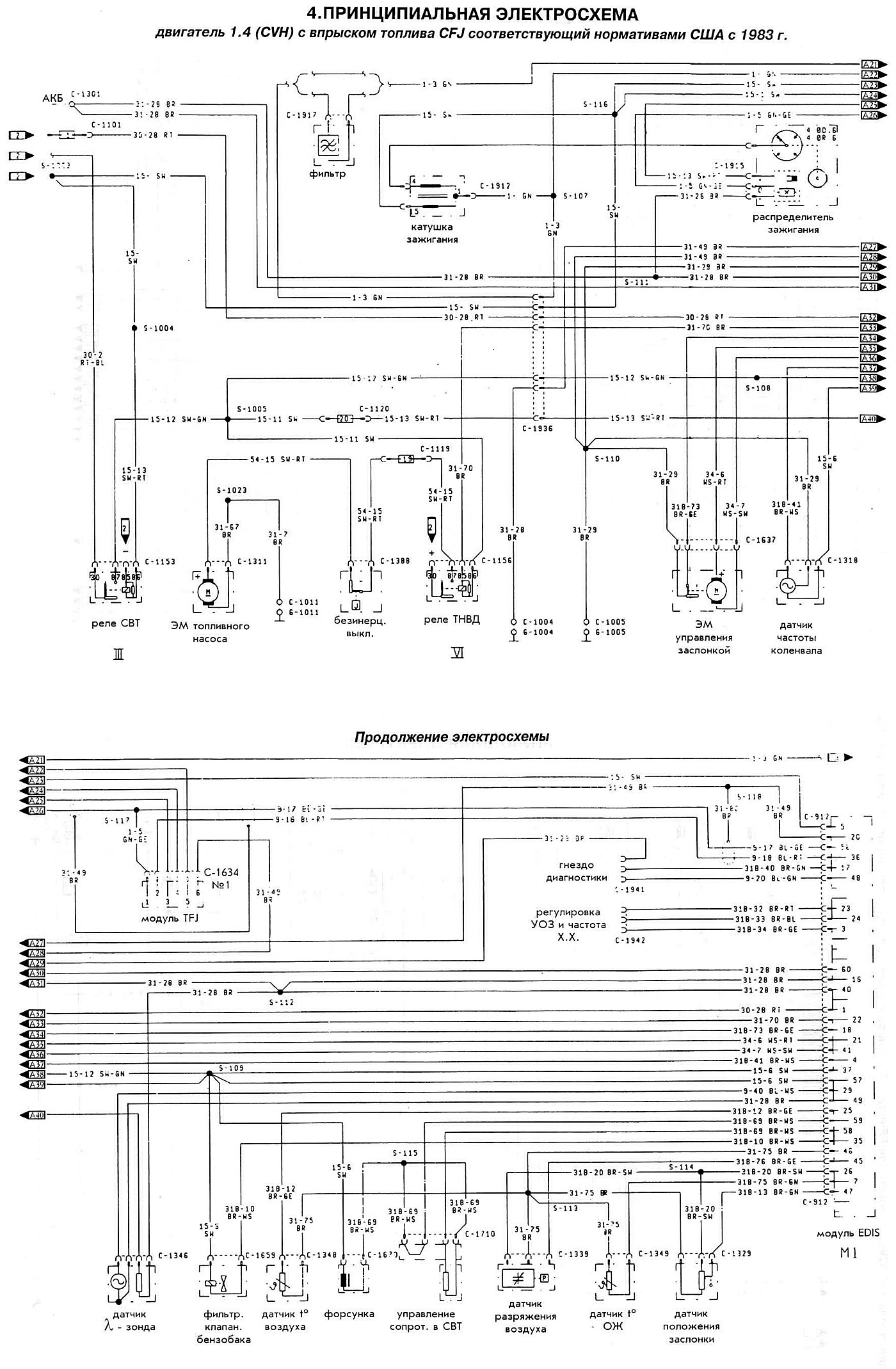

Schematic diagram engine 1.4 (CVH)
